NABEYA-LOCK-TIGHT 雙口平口鉗LTM100WL
品牌：ERON(雅朗)
型號：LTM100WL
￥待詢價（提交訂單10分鐘內獲取專屬報價單）
●設計高度時考慮了平口鉗的鉗口深度。

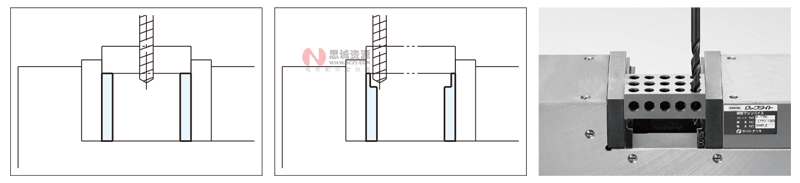

●厚度薄，適用于工件端面附近的通孔加工。（帶臺階型尤為
適合）

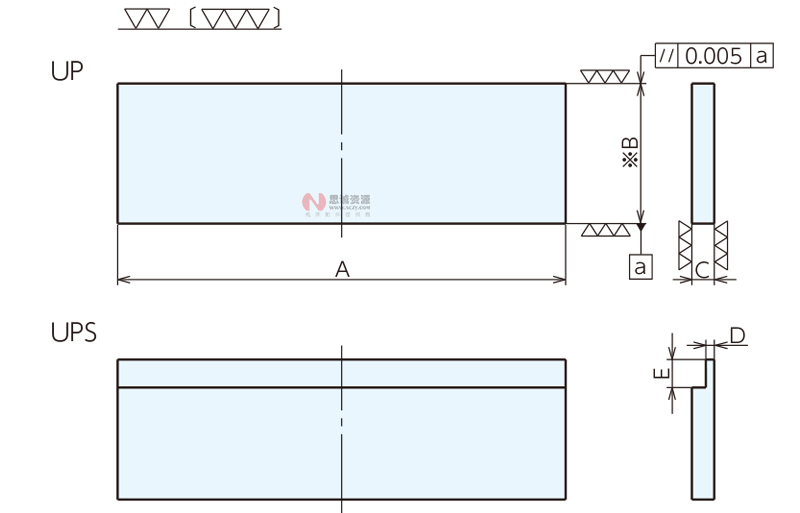

| A | B | C | 訂單號 | 型號 | 重量kg | 訂單號 | 型號 | Ｄ | E | 重量kg |
| 160 | 30 | 8 | 955665 | UP1630 | 0.60 | 955688 | UPS1630 | 3 | 10 | 0.47 |
| 160 | 35 | 8 | 955666 | UP1635 | 0.70 | 955689 | UPS1635 | 3 | 10 | 0.58 |
| 160 | 40 | 8 | 955667 | UP1640 | 0.80 | 955690 | UPS1640 | 3 | 10 | 0.67 |
| 160 | 45 | 8 | 955668 | UP1645 | 0.90 | 955691 | UPS1645 | 3 | 10 | 0.77 |
| 160 | 50 | 8 | 955669 | UP1650 | 1.00 | 955692 | UPS1650 | 3 | 10 | 0.87 |
| 160 | 51 | 8 | 955670 | UP1651 | 1.03 | 955693 | UPS1651 | 3 | 10 | 0.90 |
| 160 | 52 | 8 | 955671 | UP1652 | 1.05 | 955694 | UPS1652 | 3 | 10 | 0.92 |
| 160 | 53 | 8 | 955672 | UP1653 | 1.07 | 955695 | UPS1653 | 3 | 10 | 0.94 |
| 160 | 54 | 8 | 955673 | UP1654 | 1.09 | 955696 | UPS1654 | 3 | 10 | 0.96 |
| 160 | 55 | 8 | 955674 | UP1655 | 1.10 | 955697 | UPS1655 | 3 | 10 | 0.97 |
| 160 | 56 | 8 | 955675 | UP1656 | 1.13 | 955698 | UPS1656 | 3 | 10 | 1.02 |
| 160 | 57 | 8 | 955676 | UP1657 | 1.15 | 955699 | UPS1657 | 3 | 10 | 1.03 |
| 200 | 40 | 8 | 955677 | UP2140 | 1.06 | 955700 | UPS2140 | 3 | 10 | 0.90 |
| 200 | 45 | 8 | 955678 | UP2145 | 1.19 | 955701 | UPS2145 | 3 | 10 | 1.03 |
| 200 | 50 | 8 | 955679 | UP2150 | 1.32 | 955702 | UPS2150 | 3 | 10 | 1.15 |
| 200 | 55 | 8 | 955680 | UP2155 | 1.46 | 955703 | UPS2155 | 3 | 10 | 1.30 |
| 200 | 60 | 8 | 955681 | UP2160 | 1.60 | 955704 | UPS2160 | 3 | 10 | 1.44 |
| 200 | 61 | 8 | 955682 | UP2161 | 1.62 | 955705 | UPS2161 | 3 | 10 | 1.46 |
| 200 | 62 | 8 | 955683 | UP2162 | 1.65 | 955706 | UPS2162 | 3 | 10 | 1.49 |
| 200 | 63 | 8 | 955684 | UP2163 | 1.67 | 955707 | UPS2163 | 3 | 10 | 1.50 |
| 200 | 64 | 8 | 955685 | UP2164 | 1.70 | 955708 | UPS2164 | 3 | 10 | 1.54 |
| 200 | 65 | 8 | 955686 | UP2165 | 1.73 | 955709 | UPS2165 | 3 | 10 | 1.56 |
| 200 | 67 | 8 | 955687 | UP2167 | 1.78 | 955710 | UPS2167 | 3 | 10 | 1.62 |
思誠資源為您提供：ERON-NABEYA雅朗薄型平型塊的采購報價、ERON(雅朗)UP1630型號參數、規格圖片、PDF畫冊等資料，如您想了解更多關于ERON(雅朗)正品品牌的其他精密平口鉗資料與產品貨期庫存、行情價格，就在思誠資源MRO商城。
備注：因廠家會在沒有任何提前通知的情況下更改產品包裝、產地或者一些附件，本公司不能確保客戶收到的貨物與思誠資源網站提供的產品圖片、產地、附件說明等完全一致。若本網站沒有及時更新，敬請諒解！
